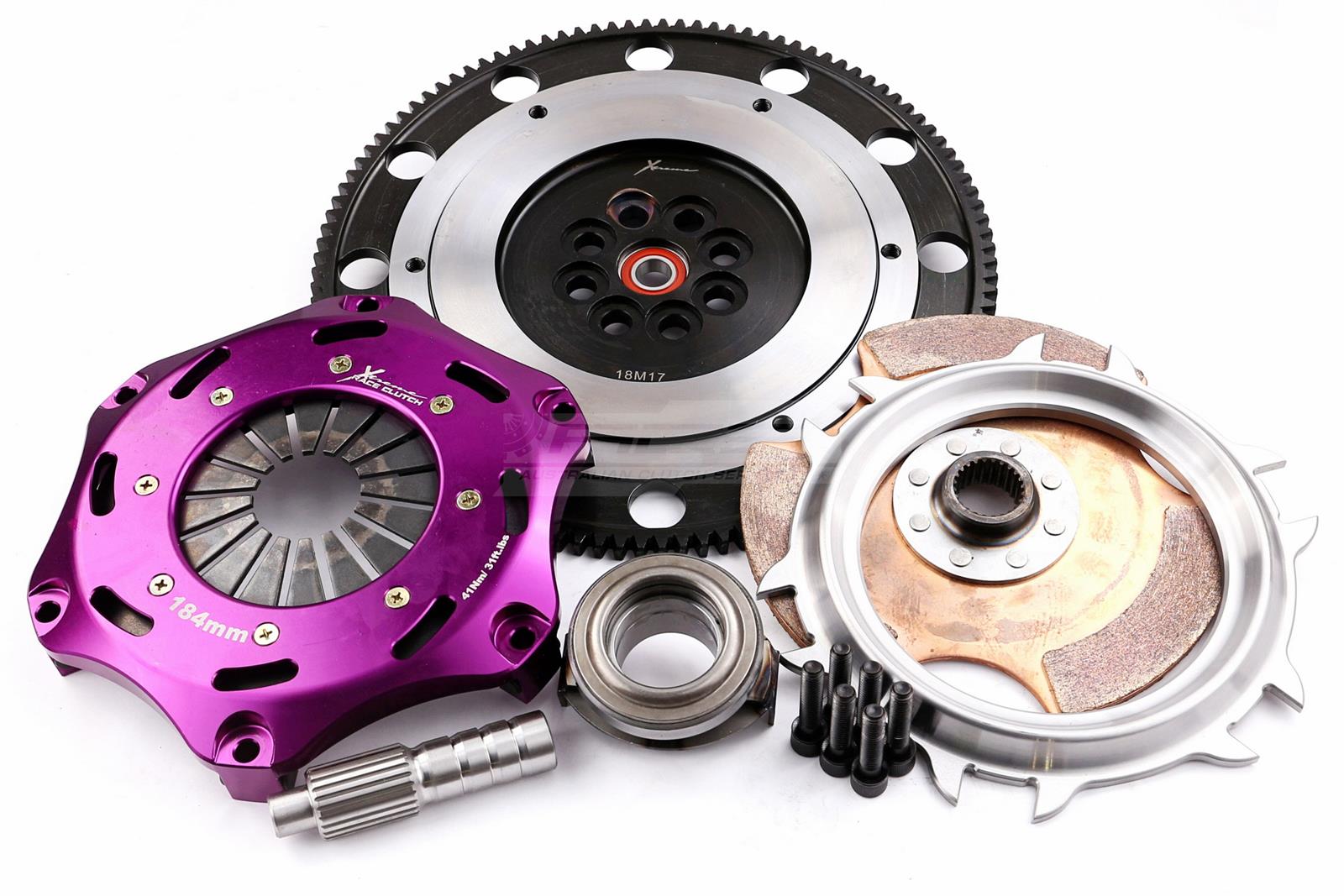

Xtreme Performance - Rigid Ceramic Single Plate Clutch Kit Incl Flywheel - KHN18522-1E
Xtreme Performance - Rigid Ceramic Single Plate Clutch Kit Incl Flywheel - KHN18522-1E
Autoa ei ole valittu
Valitse auto varmistaaksesi sopivuuden

Xtreme Performance - Rigid Ceramic Single Plate Clutch Kit Incl Flywheel - KHN18522-1E

Artikla #
ACS
Normaalihinta €1,328.54
Myyntihinta €1,328.54 Normaalihinta
Yksikköhinta
Sisältäen verot.

-1E

The Xtreme 184mm Race Clutch is an economically priced solution for those wanting a strong Race clutch without having to compromise on quality. The Race Clutch is a lightweight design for when every second counts.
  Ø184mm Light Diaphragm (2.6mm) Ø184mm Heavy Diaphragm (2.8mm)
Clamping Force 950kg 1080kg
Torque Rating 535Nm (395ft.lbs) 610Nm (450ft.lbs)
Bearing Contact Diameter 44-52mm 44-52mm
Bearing Load (@ 48mm) 210kg 260kg
Release Travel Required 5mm 5mm
Assembly Mass (without flywheel) 3.10kg 3.10kg
Disc Set Static Mass 0.6kg
Friction Thickness New 6.35mm (0.250") 6.35mm (0.250")
Friction Thickness Worn 5.58mm (0.220") 5.58mm (0.220")

Product Features:

  • Push type billet alloy cover
  • 4140 Chromoly pressure plate
  • Hardened steel wear posts
  • High and low ratio pressure plate options
  • Low inertia
  • Serviceable components
  • SFI certified design

Tuotetiedot

Tuoteparametrit
Analogiset osat
Alkuperäiset osat
Tuotteen yhteensopivuus
Xtreme Performance - Rigid Ceramic Single Plate Clutch Kit Incl Flywheel, for Honda Domani Integra. Part number KHN18522-1E.
