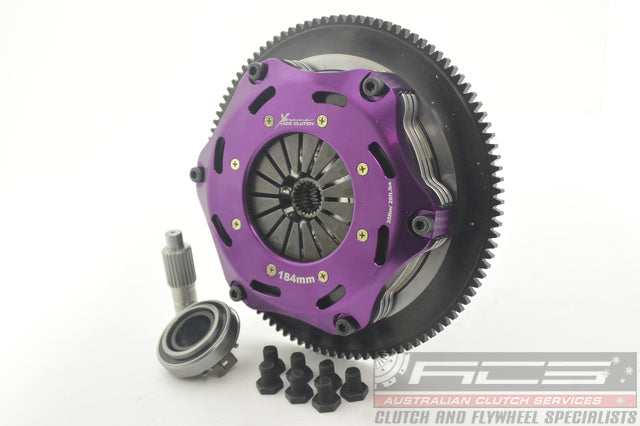

Xtreme Clutch Conversion kit - MITS 4G63 7BLT - 4G63 23x25.4mm - KMI18527-3E
Xtreme Clutch Conversion kit - MITS 4G63 7BLT - 4G63 23x25.4mm - KMI18527-3E
Autoa ei ole valittu
Valitse auto varmistaaksesi sopivuuden

Xtreme Clutch Conversion kit - MITS 4G63 7BLT - 4G63 23x25.4mm - KMI18527-3E

Artikla #
ACS
Normalna cena €2,078.55
Cena sprzedaży €2,078.55 Normalna cena
Cena jednostkowa
Z wliczonym podatkiem.


The Xtreme 184mm Race Clutch is an economically priced solution for those wanting a strong Race clutch without having to compromise on quality. The Race Clutch is a lightweight design for when every second counts.
  Ø184mm Light Diaphragm (2.6mm) Ø184mm Heavy Diaphragm (2.8mm)
Clamping Force 950kg 1080kg
Torque Rating 1600Nm 1820Nm
Bearing Contact Diameter 44-52mm 44-52mm
Bearing Load (@ 48mm) 210kg 260kg
Release Travel Required 5mm 5mm
Assembly Mass (without flywheel) 4.75kg 4.75kg
Disc Set Static Mass 1.2kg
Friction Thickness New 2.6mm (0.103") 2.6mm (0.103")
Friction Thickness Worn 2.36mm (0.093") 2.36mm (0.093")

Product Features:

  • Push type billet alloy cover
  • 4140 Chromoly pressure plate
  • Hardened steel wear posts
  • High and low ratio pressure plate options
  • Low inertia
  • Serviceable components
  • SFI certified design

Tuotetiedot

Tuoteparametrit
Analogiset osat
Alkuperäiset osat
Tuotteen yhteensopivuus
Xtreme Clutch Conversion kit - MITS 4G63 7BLT - 4G63 23x25.4mm. Part number KMI18527-3E.
Clutch Industries Xtreme Clutch Conversion kit - MITS 4G63 7BLT - 4G63 | KMI18527-3E
